Bushing Wrench

Pistolsmith's Description:

I designed this bushing wrench to be utilized in fitting bushings.  I designed it specifically for the parts (EGW bushings) I use, and how I like to fit bushings.  There are many cheaper bushing wrenches available, and if you are wanting to use a wrench for disassembly, you may be happier with somebody else’s wrench.

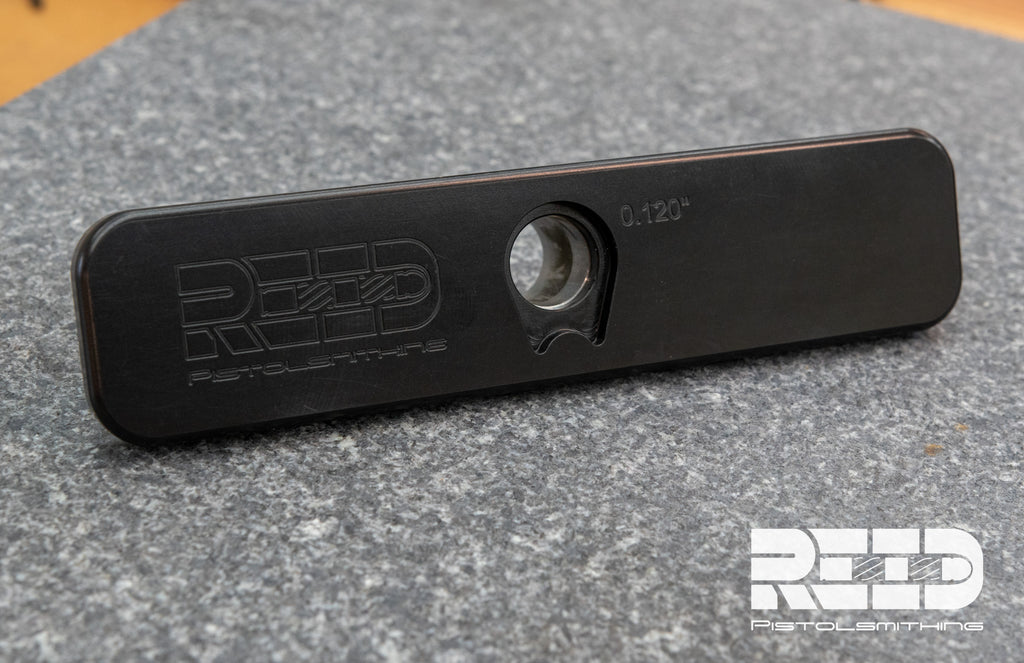

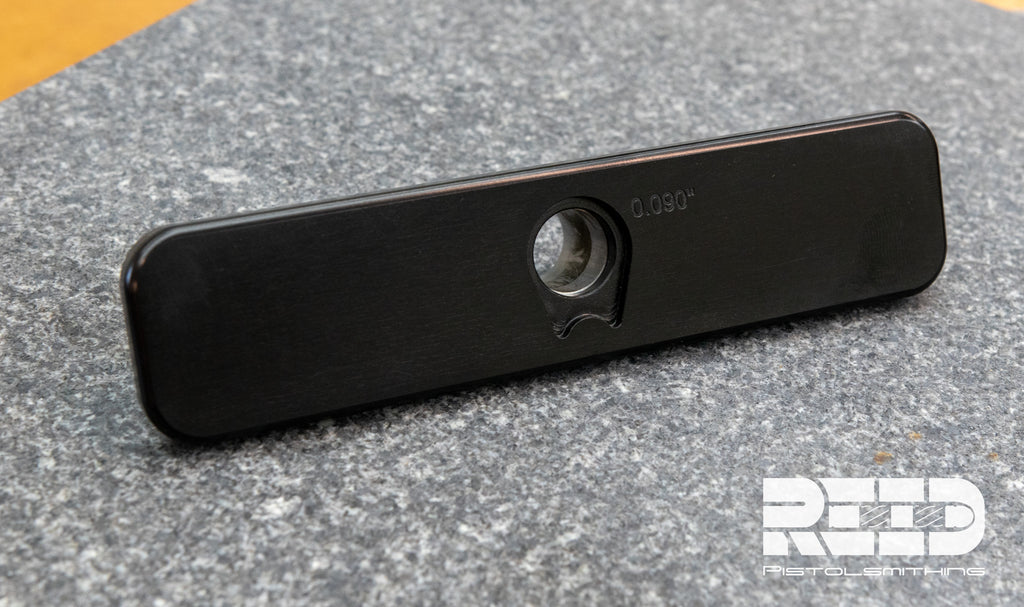

With that said, I did try to produce a high quality tool that is enjoyable to use.  I find I enjoy my time in the shop much more when I like the tools that I’m using. This wrench is thicker than most at .325” thick.  It is 1.400” wide and 6.00” long.  I put a generous round over on all of the edges.  The flange on an EGW bushing is .125 - .128”.  So I added a recess that is .120” deep.  This allows a barrel to pass through the wrench, but the bushing will hold the wrench off the face of the slide.  This will make the wrench last longer, and also keep the aluminum from wiping off onto your slide, especially if you’re fitting a new bushing to a slide that already has a finish on it.  The opposite side also has a .090” recess.  I will often thin the flange on the bushing, so this is designed to work in that instance.  It is finished in a Type 3 anodizing, which should offer the most durability that I can get out of an aluminum tool.

100% Made in America.

This is the first part I have offered for sale.  I and my family very much appreciate the support if you choose to spend your money here.  Every sale helps me to keep moving forward and bringing more high quality products to the market.

Pistolsmith wife's description:

Designed by long time 1911 pistolsmith, this bushing wrench provides the leverage you need to safely and easily rotate the barrel while controlling the recoil spring and plug during field stripping and routine maintenance. This unique model was made with match-grade and custom fit barrels in mind. Expertly designed to give you the control and leverage to get the job done with out risk of scratching your gun's finish. A must have for any range bag and home work bench!

100 % Made and designed in Texas.
